Split mechanical seals are primarily used in applications requiring rapid installation or where conventional seal replacement time is unacceptable. The key advantage is the ability to replace the seal without disassembling the equipment. Additionally, split seals can replace packing seals in equipment with split gland rings.

However, the use of split seals is limited by pressure constraints and is not suitable for media containing solid particles. We are continuously conducting research to expand their application range.



Common Material Combinations

Sealing Faces: Graphite, Silicon Carbide, Aluminum Oxide

Secondary Seals: NBR, FKM, EPDM

Metal Components: 304, 316L, 2Cr13, Duplex Steel, Hast.C



Structural Description

Single mechanical seal, balanced type



Operating Parameters

Temperature: -20°C to 160°C

Surface Speed: 11 m/s

Pressure: 8 bar (0.8MPa)

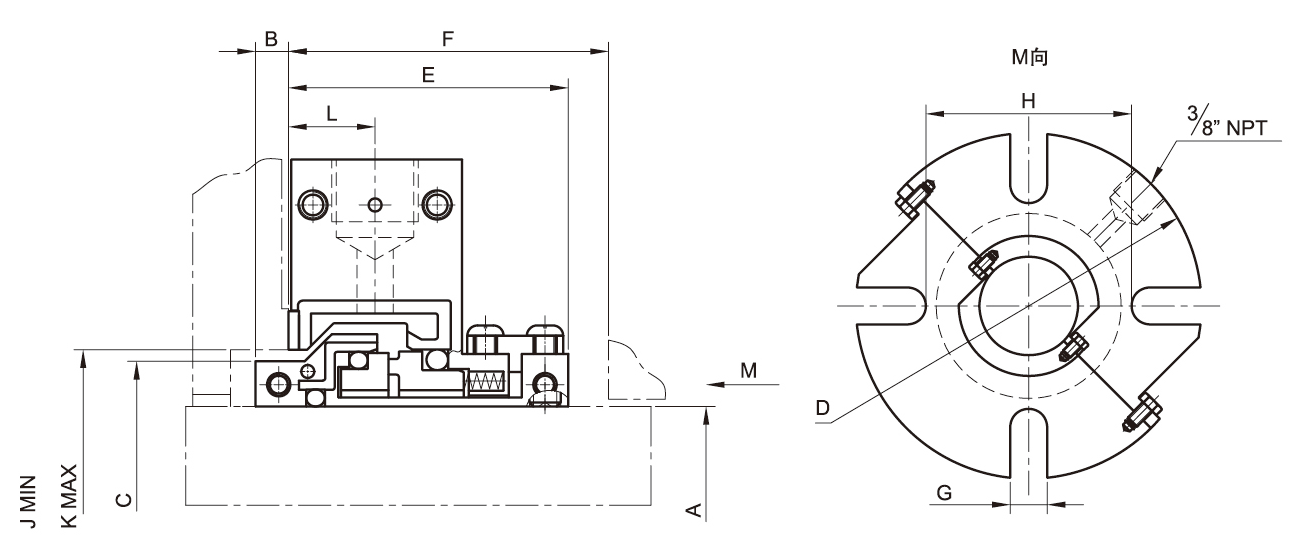

Imperial Sizes (Unit: Inch), with sizes above 8.500 inch can be customized.

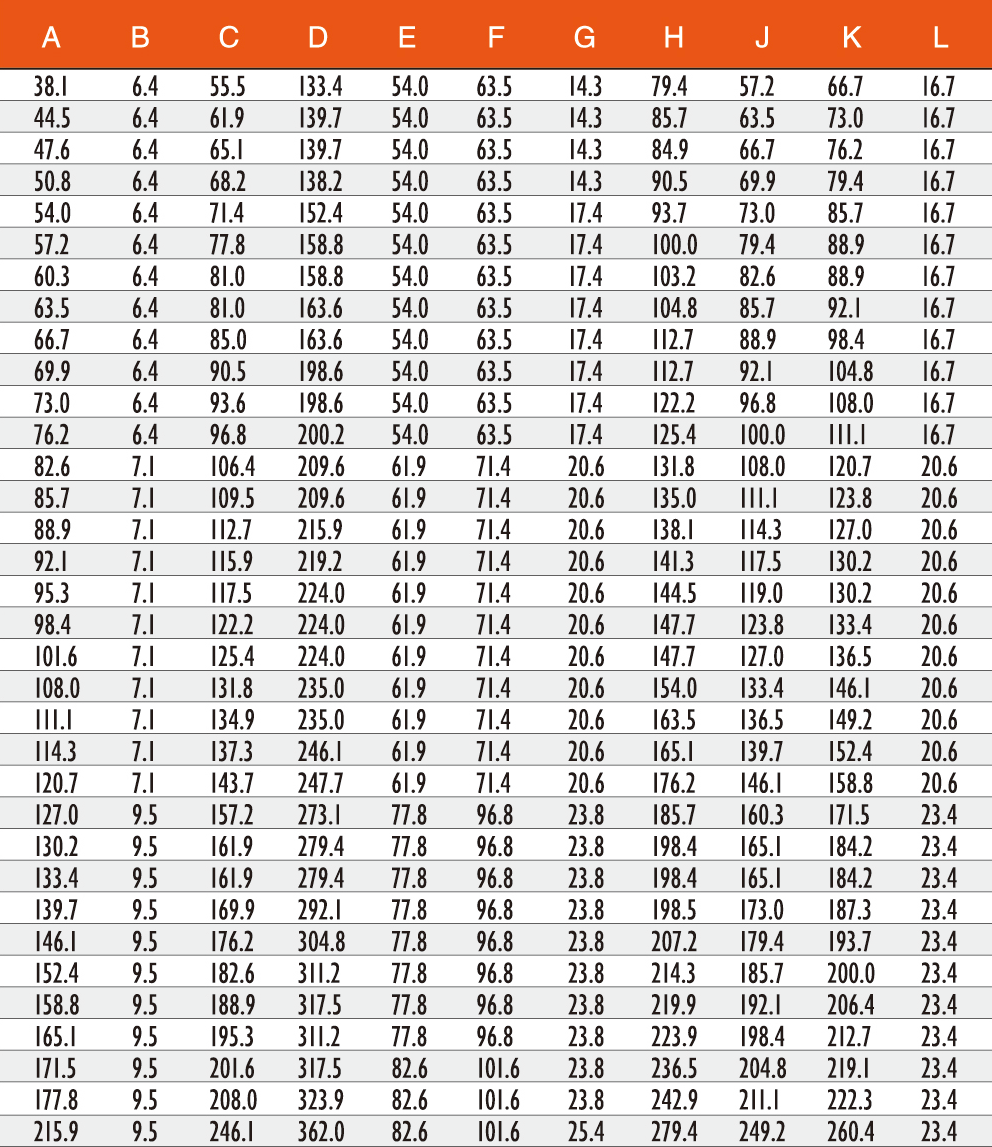

Metric dimensions (mm), with sizes above 215.9mm available for customization.

I. Scope of Application

Fully Split Seals for Pumps

Mainly used for shaft seal maintenance in various centrifugal pumps and mixed-flow pumps, particularly suitable for critical process flows where prolonged shutdowns are not permitted. Typical applications include circulation pumps in water supply systems, cooling water pumps in power plants, and process pumps in the petrochemical industry. This type of seal can be replaced without disassembling the pump body or motor.

Fully Split Seals for Agitators

Designed specifically for large reaction kettles and mixing tanks, suitable for agitation equipment in the chemical, pharmaceutical, and food industries.

II. Usage Methods

Pre-Installation Preparation

- Clean the shaft surface to ensure it is free of burrs and corrosion.

- Check the equipment bearing clearance to confirm it is within the allowable range.

- Prepare specialized installation tools, including split fixtures, guide sleeves, etc.

On-Site Installation Steps

- Slide the split components onto the shaft in the marked order, using specialized tools to ensure proper alignment of all components.

- Evenly tighten the connecting bolts to the torque values specified in the technical manual.

- After installation, manually rotate the shaft to confirm no sticking or obstruction.

Operation and Debugging

- Perform a static pressure test before the first startup to verify seal performance.

- Operate at low speed for 2 hours, checking leakage and temperature rise.

- Gradually increase to the working speed while monitoring vibration and temperature changes.

Maintenance

- Check seal leakage weekly and record data.

- Inspect fastener tightness monthly.

- Examine seal face wear quarterly.

- Conduct a systematic overhaul annually.

III. Common Issue Handling

Leakage After Installation

- First, check if all split surfaces are aligned and ensure positioning pins are properly installed.

- Next, verify that the tightening torque is evenly distributed.

- Finally, confirm that secondary seals are correctly installed and undamaged.

Abnormal Noise During Operation

- This may be due to excessive component clearance or dry friction in the friction pair.

- Immediately shut down the equipment to inspect seal face contact.

- Ensure the lubrication system is functioning properly.

- Check whether component clearances meet requirements.

Short Service Life

- Focus on checking whether the medium contains abrasive particles.

- Verify whether the seal selection is correct for the application.

- Inspect equipment for excessive vibration.

- Confirm the flushing system is operating normally.

IV. Precautions

Installation Environment Requirements

- The on-site ambient temperature should be between 5°C and 40°C, with relative humidity not exceeding 80%.

- Avoid installation work in dusty environments.

- Ensure adequate lighting in the work area before installation.

Tool Usage Specifications

- Use only specialized tools provided by the original manufacturer.

- Violent installation methods such as hammering are strictly prohibited.

- Regularly calibrate torque wrenches.

Safety Precautions

- Display safety warning signs at the installation site.

- Wear safety harnesses for elevated work.

- Avoid rotating parts during equipment debugging.

V. Technical Support Services

The company has established a customer after-sales emergency response mechanism. Always refer to the installation and maintenance manual of the corresponding model for specific operations. If technical support is required for special working conditions, please contact our engineering team promptly.
